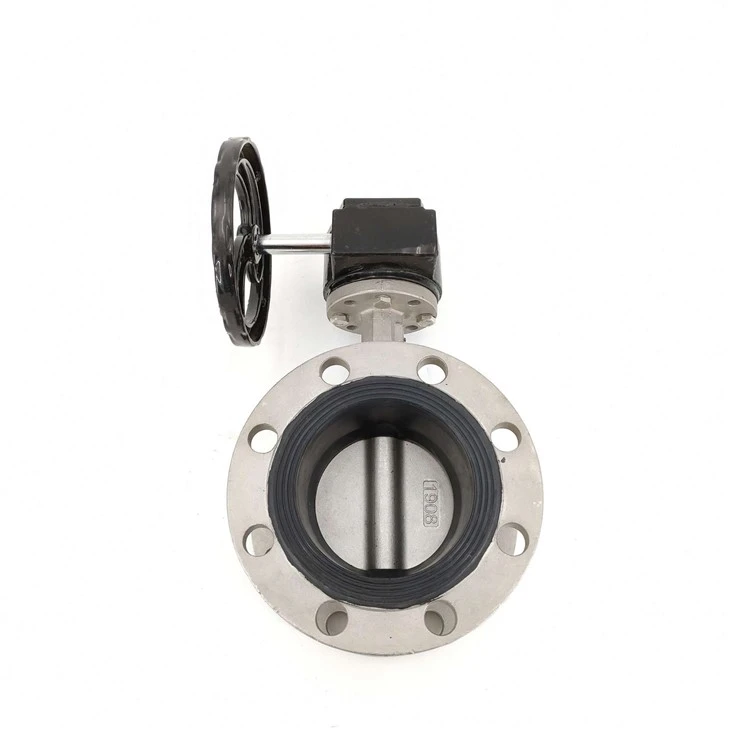

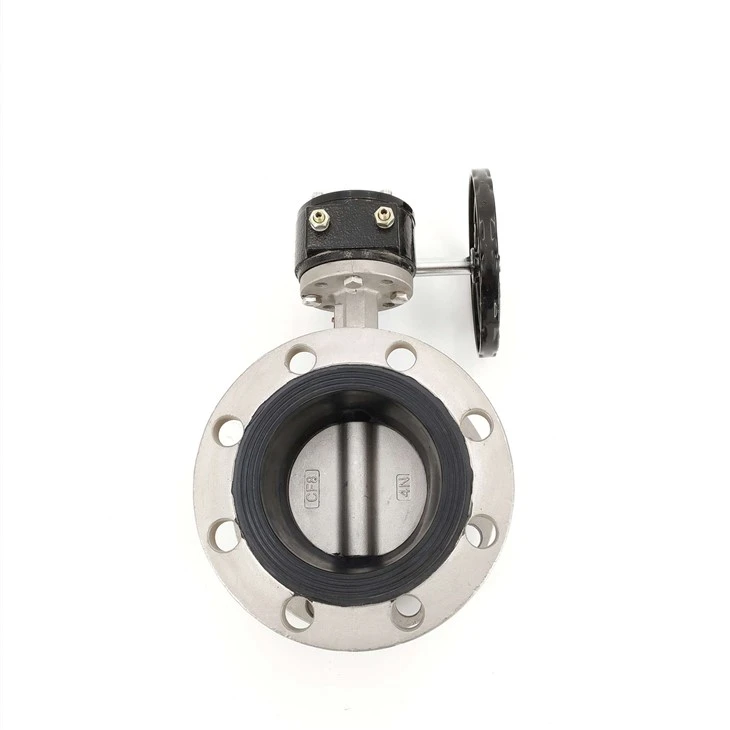

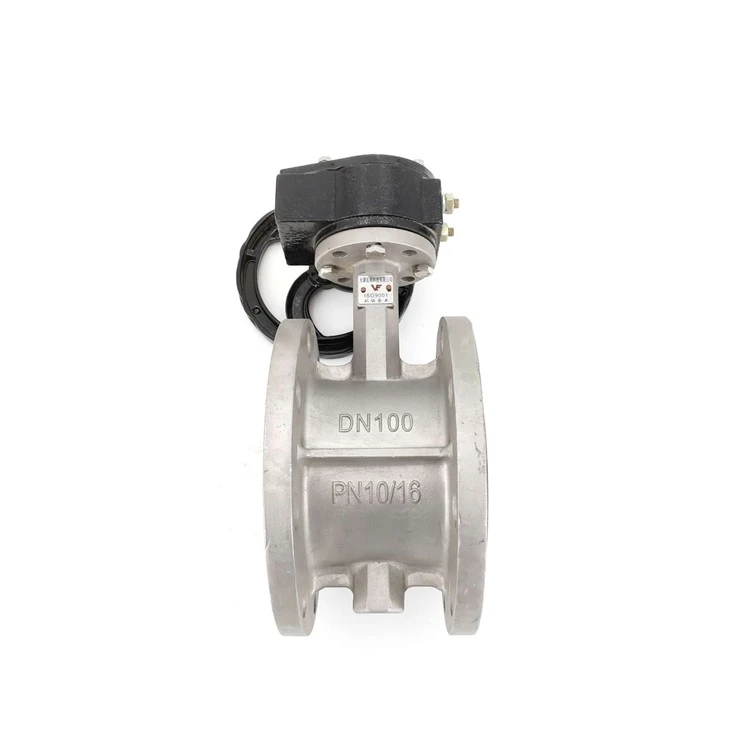

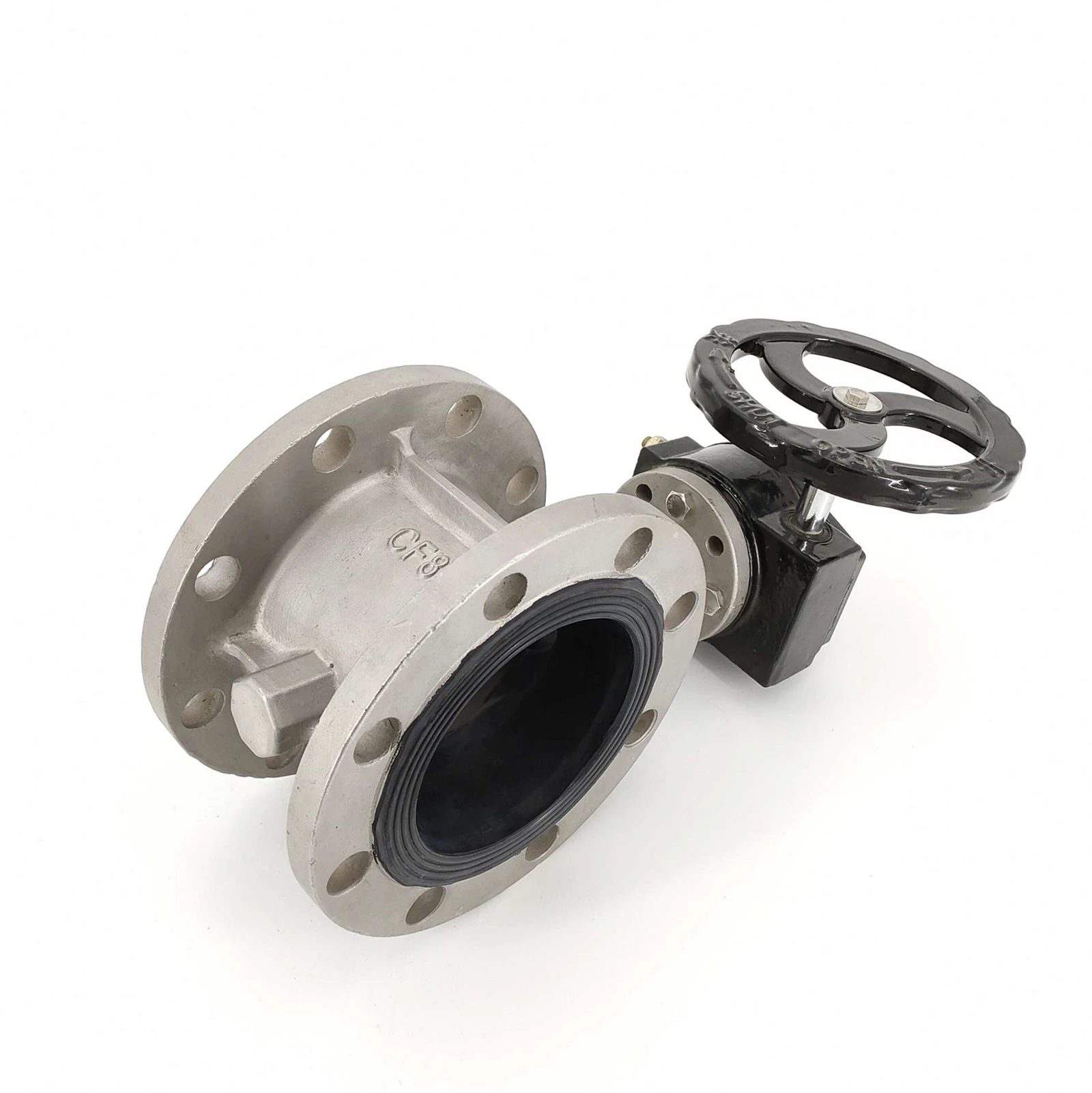

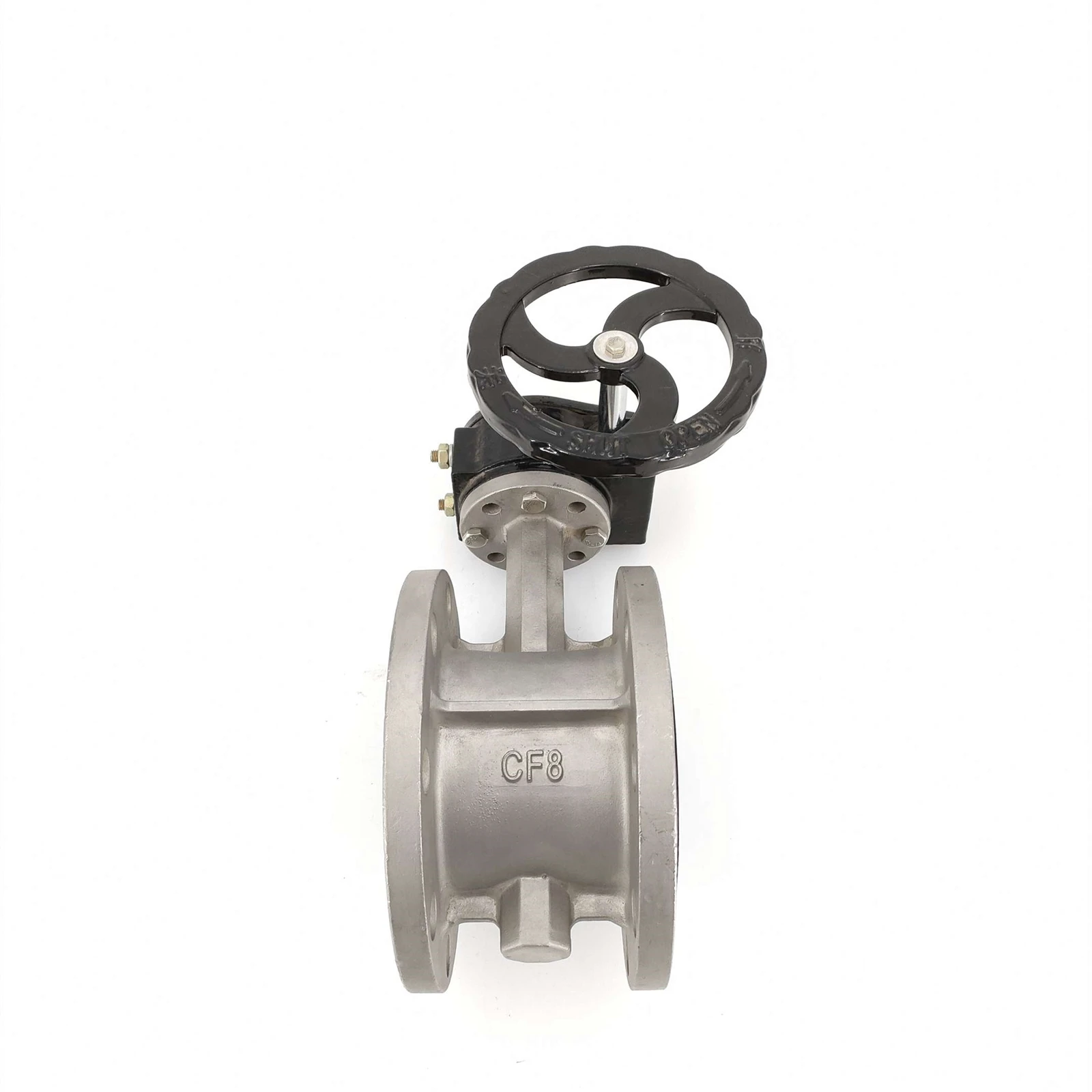

Stainless hlau Flange Npauj Npaim Valve
Kev ntsuas siab: PN6 rau PN40, Class150 txog Class300
Cov xov xwm siv tau: dej, chav dej, cov khoom siv roj, roj, cov kua corrosive
Peb stainless hlau flanged npauj npaim li qub yog ua los ntawm siab - zoo 304/316 stainless hlau, featuring zoo heev corrosion kuj, siab zog thiab ntev kev pab cuam lub neej. Lawv tsim nyog rau kev ua haujlwm hnyav xws li kev kho dej, tshuaj engineering, roj av, khoom noj thiab tshuaj, thiab HVAC systems. Lub valve no muaj cov qauv compact, qhib thiab kaw sai, thiab muab kev sib khi ua ke los ua kom tsis muaj paug. Nws yog qhov kev xaiv zoo tshaj plaws rau kev tswj cov dej hauv cov kav dej.
Khoom nta
✔ High- cov khoom siv hlau tsis zoo - Lub cev lub cev, lub phaj valve thiab lub qia valve yog tag nrho ua los ntawm 304/316 stainless hlau, uas tiv taus cov kua qaub thiab alkali thiab xeb, thiab tsim nyog rau cov xov xwm corrosive heev.
✔ Flange kev twb kev txuas tsim - ua raws li cov qauv thoob ntiaj teb xws li ANSI, DIN, JIS, thiab GB, nws yooj yim rau nruab thiab ua kom ruaj khov sealing.
✔ Bidirectional sealing kev ua tau zoo - Nruab nrog EPDM, PTFE lossis hlau nyuaj sealing valve lub rooj zaum, nws tuaj yeem hloov mus rau qhov kub sib txawv (-20℃rau 200 degree) thiab siab (PN10-PN40).
✔ Tsawg ntws tsis kam tsim - Cov qauv tsim ntawm npauj npaim phaj txo qis kev poob siab thiab txhim kho cov kua dej.
Hom kev ua haujlwm yooj yim - txhawb nqa tes, cab iav, pneumatic lossis hluav taws xob actuators kom ua tau raws li qhov yuav tsum tau ua ntawm phau ntawv qhia / tsis siv neeg tswj.
Technical parameters
Txoj kab uas hla: DN 50 - DN1200 (2" - 48")
Kev ntsuas siab: PN6 rau PN40, Class150 txog Class300
Cov xov xwm siv tau: dej, chav dej, cov khoom siv roj, roj, cov kua corrosive
Txoj kev sib txuas: Flange (RF / FF), wafer hom (yeem)
Ua haujlwm kub: -20℃txog 200℃(kho raws li cov khoom sib khi)
Vim li cas ho xaiv peb stainless hlau flanged npauj npaim valve?
✅ Kev tswj hwm nruj nruj - Txhua lub valve tau dhau los ntawm kev ntsuas siab, kuaj pom thiab cov ntaub ntawv pov thawj kom ntseeg tau.
✅ Cov kev pabcuam Customized - Cov kev daws teeb meem ntawm tus kheej rau ntau qhov sib txawv, kev ntsuas siab thiab cov ntaub ntawv sib khi.
✅ Kev lees paub thoob ntiaj teb - raws li ISO 9001, CE, API 609 thiab lwm yam qauv thoob ntiaj teb, xa tawm yam tsis muaj kev txhawj xeeb.
Lub Hoobkas ncig saib
Product Packing & Shipping
Khoom siv
Yog tias koj tab tom nrhiav rau siab - zoo, vam khomkov flange npauj npaim valve, tiv tauj peb hnub no. Txawm hais tias koj xav tau ib chav tsev lossis ib qho kev txiav txim ntau rau kev lag luam, peb npaj txhij los pab koj nrog cov kev daws teeb meem zoo tshaj plaws ntawm lub khw.
Tiv tauj pebrau pricing, technical specifications, thiab cov khoom catalogs.
