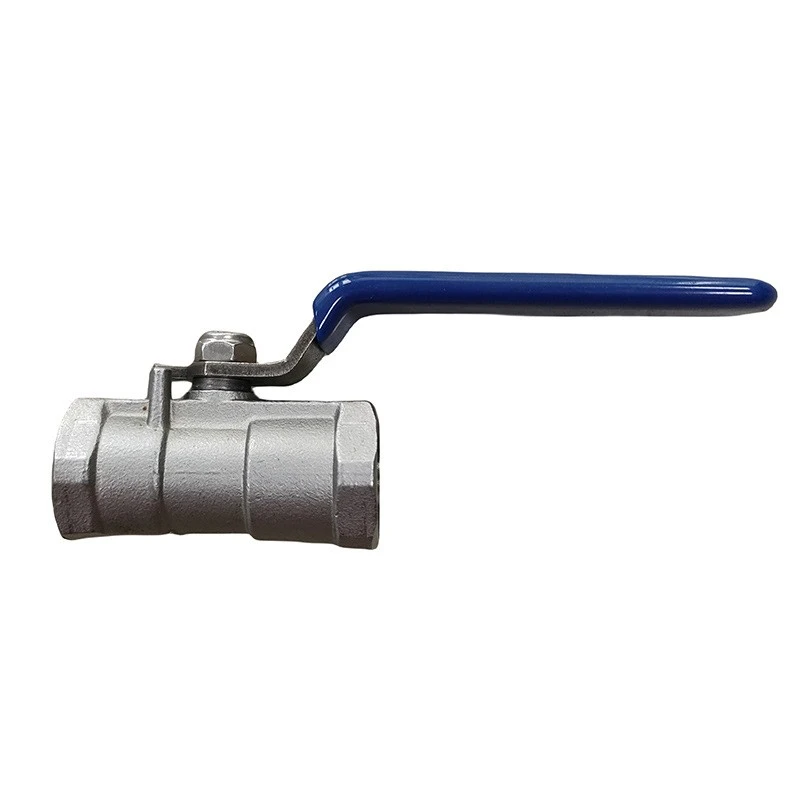

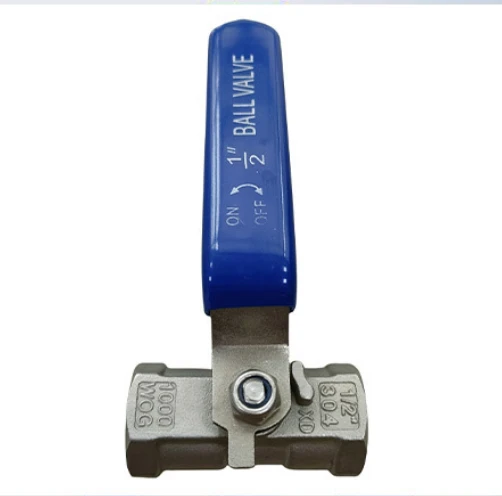

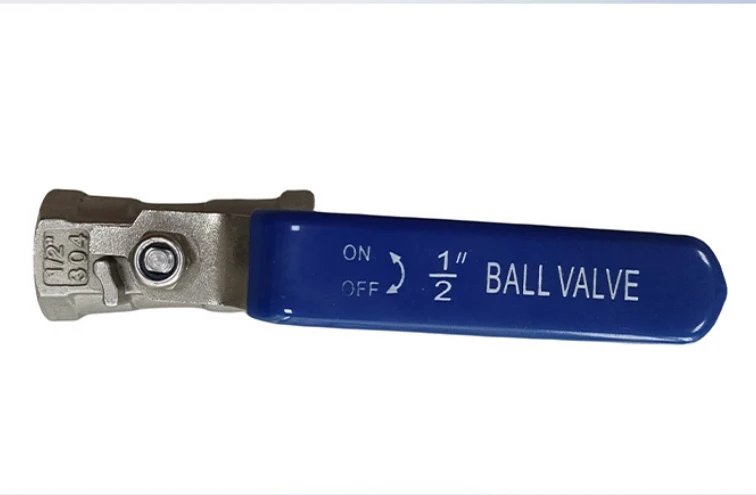

Ib Daim Threaded Pob Valve



Ib daim threaded pob valve yog ib hom kev lag luam valve, feem ntau yog siv los txiav tawm thiab tswj cov kua hauv cov kav dej. Nws muaj cov yam ntxwv ntawm cov qauv compact, zoo sealing, thiab ua haujlwm yooj yim.



"ib- thooj" ntawm hom valve no yog hais txog lub valve lub cev yog forged tag nrho, nrog lub zog siab thiab tsis yooj yim rau xau; Lub sij hawm 'threaded thread' qhia tias nws txoj kev sib txuas yog ib qho kev sib txuas hauv xov (xws li G, NPT, thiab lwm yam qauv), uas yooj yim rau nruab rau hauv me me - txoj kab uas hla thiab haum rau ntau qhov chaw hauv xov xwm xws li dej, roj, thiab roj.





Ib - thooj valve lub cev:Lub cev lub cev yog kev sib koom ua ke los yog cam khwb cia, tsis yog - tshem tau, tsis muaj lub cev bolts, thiab nta cov qauv kev cog lus tshaj plaws.Threaded kev twb kev txuas:Ob qhov kawg yog nyob rau hauv threaded rau ncaj screwing rau hauv pipelines, enabling yooj yim installation.

90℃rotary rau / tawm:Tag nrho qhib lossis kaw los ntawm kev tig tus kov 90 degree, tso cai rau kev ua haujlwm ceev.

Reduced bore tsim:Lub pob sab hauv feem ntau me dua li cov kab yeeb nkab nominal (piv txwv li, qhov tseeb bore approx. DN20 rau DN25).





Qauv	Q11F(Q – Pob valve, 1 – Poj niam xov, 1 – Ib tug - thooj cev, F – Fluoroplastic foob)
Nominal txoj kab uas hla	DN6 ~ DN100 (1/8 "~ 4")
Kev ntsuas siab	PN1.6 ~ 4.0MPa (16 ~ 40 kgf / cm²)
Qhov kub thiab txias	-20℃~ 180℃(PTFE foob)
Valve lub cev	Stainless hlau 304, 316, tooj dag
foob	PTFE (Polytetrafluoroethylene)











• Compact loj thiab lub teeb yuag, haum rau cov chaw kaw.
• Tsis muaj cov ntsiab lus tawm sab nraud; ib tug qauv ua kom zoo heev leakproof kev ua tau zoo.
• Tus nqi qis thiab tus nqi pheej yig.
• Kev teeb tsa ceev; threaded kev twb kev txuas yuav tsum tsis muaj vuam.
• Tsawg khiav tsis kam; ze li ntawm ncaj nraim- dhau ntawm ntws hauv txoj haujlwm qhib tag nrho.





1. On -off control for general media such as dej, roj, roj, ncu, thiab lwm yam.
2. Cov cuab yeej siv cua compressors, cov khoom siv me me, thiab cov kav dej hauv tsev / kev lag luam.
3. Daim ntawv thov rhiab rau tus nqi thiab qhov chaw, nrog kev saib xyuas tsawg zaus.
