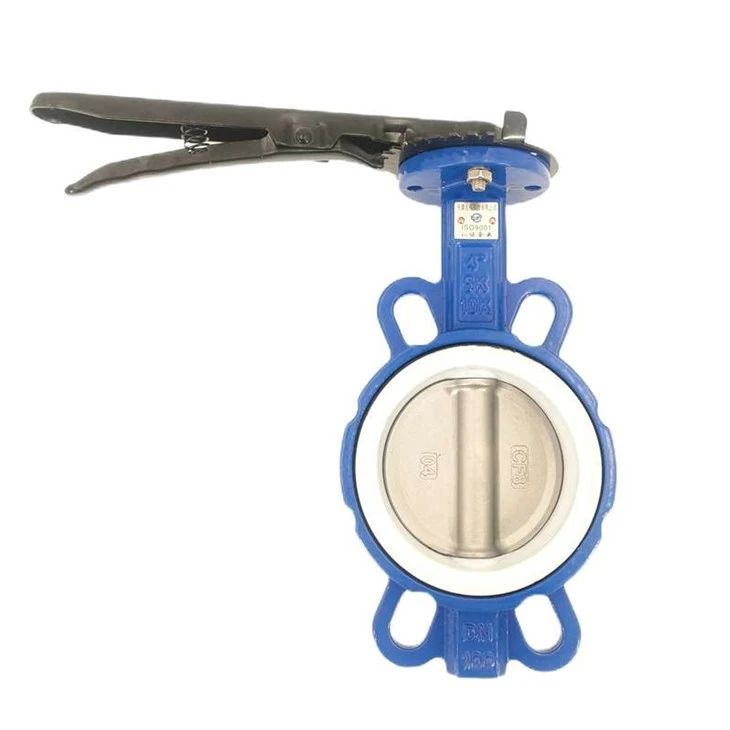

Npauj Npaim Wafer Hom Valve

Qauv: D71F-10Q
Hom: Wafer Npauj Npaim Valve
Khoom siv lub cev: Hlau Hlau (QT450-10)
Cov Khoom Siv Disc: Cov Hlau Hlau + FEP / FKM hauv ob sab phlu
Khoom siv: FEP / FKM (Fluoropolymer)

Xa kev nug

Khoom Taw qhia

D71F-10Q npauj npaim wafer hom valve yog qhov siab -zoo, wafer-style valve tsim los rau / tawm thiab tswj kev ntws hauv cov kav dej. Nrog rau PN10 siab ntsuas (10 bar) thiab qib - ua haujlwm mechanism, lub valve no ua kom ntseeg tau tias kaw, ua haujlwm yooj yim, thiab lub neej ua haujlwm ntev hauv ntau daim ntawv thov kev lag luam.

Ntsiab nta & Cov txiaj ntsig

Kev tsim kho muaj zog - Ua los ntawm cov hlau nplaum (Q) nrog FEP / FKM-cov kab disc kom zoo corrosion kuj thiab kav ntev.
Npuas-Tight Shut-Off - Xyuas kom xoom xoom, ua rau nws zoo tagnrho rau cov dej, cua, roj, thiab kev siv tshuaj me me.
Lub teeb yuag & Compact - Wafer tsim txuag chaw thiab txo cov nqi teeb tsa piv rau lub log- hom li qub.
Kev Ua Haujlwm Yooj Yim - Qiv kov tso cai rau kev ua haujlwm ceev ceev, haum rau kev siv nquag.
Kev siv ntau yam - Zoo meej rau HVAC, kho dej, tiv thaiv hluav taws, thiab cov kav dej dav dav.

Technical Specifications

Qauv	D71F-10Q
Hom	Npauj Npaim Valve
Khoom siv lub cev	Hlau Hlau (QT450-10)
Khoom siv Disc	Cov Hlau Hlau + FEP / FKM Sab hauv
Khoom siv zaum	FEP / FKM (Fluoropolymer)
Kev ntsuas siab	PN10 (10 bar / 145 psi)
Qhov kub thiab txias	-20 ° txog 150 ° F (-4 ° F txog 302 ° F)
Kev ua haujlwm	Phau ntawv Lever
Kev sib txuas	Wafer (nruab nrab ntawm flanges)
Cov qauv	ISO, DIN, AWWA, API (customizable)
