Lug Hom Npauj Npaim Valve
Tianjin Liangfa Technology Co., Ltd. yog Nws yog ib lub tuam txhab loj - nplai valve tsim kev koom ua ke R&D, ntau lawm thiab muag khoom. Cov khoom tseem ceeb muaj xws li npauj npaim li qub, kub siab thiab siab siab li qub, rooj vag li qub, kos li qub, lub ntiaj teb li qub, tswj cov li qub, pob li qub, cov khoom siv dej thiab cov kua dej, cov dej hiav txwv, API li qub thiab lwm yam series.
Vim li cas thiaj xaiv peb
Pab neeg tshaj lij
Peb muaj ib pab neeg tshaj lij uas paub txog cov khoom ua tau zoo, tuaj yeem nkag siab cov neeg siv khoom xav tau raws sijhawm, thiab tuaj yeem ua kom pom cov khoom zoo. Peb tau nruab nrog cov kws tshaj lij tom qab- cov neeg ua haujlwm muag khoom los xyuas kom meej tias peb teb rau cov neeg siv kev thov hauv 24 teev thiab muab cov kev daws teeb meem.
Peb daim ntawv pov thawj
Peb cov khoom tau dhau ISO9001: 2000 thoob ntiaj teb kev tswj hwm qhov system ntawv pov thawj, ISO14001: 2004 ib puag ncig kev tswj hwm daim ntawv pov thawj, thiab GB / T28001-2001 daim ntawv pov thawj kev noj qab haus huv thiab kev nyab xeeb.
Cov khoom siv ntau lawm
Peb muaj txhua yam kev txawj ntse loj thiab nruab nrab- cov khoom siv loj loj thiab cov khoom siv tshuaj ntsuam xyuas thiab cov cuab yeej siv thiab cov cuab yeej siv.
Yooj yim rau kev teeb tsa hauv ntau qhov xwm txheej:Lub lug hom valve muaj threaded qhov nyob rau hauv lub cev, uas tso cai rau nws yuav tsum tau bolted ncaj qha mus rau lub flanges ntawm ob sab ntawm lub raj. Qhov no muab kev yooj yim dua thaum lub sijhawm teeb tsa thiab kev saib xyuas vim tias nws tuaj yeem ntsia nruab nrab ntawm ob lub flanges yam tsis xav tau kev txhawb nqa sab nraud ntxiv.
Yuav raug tshem tawm yam tsis muaj kev cuam tshuam qhov system:Nyob rau hauv rooj plaub ntawm kev saib xyuas lossis hloov, lub log- hom valve tuaj yeem raug tshem tawm thiab hloov pauv yam tsis tas yuav tsum tau disassemble tag nrho cov kav dej. Cov kev sib txuas ntawm flange tuav lub valve nyob rau hauv qhov chaw, yog li tsis tas yuav tshem tawm lossis cuam tshuam cov kav dej sib txuas.
Siab Mechanical Strength:Vim hais tias ntawm threaded lugs, hom valve no feem ntau muab cov neeg kho tshuab lub zog zoo dua, ua rau nws tsim nyog rau siab - siab los yog loj dua - txoj kab uas hla.
Ntau Versatility:Nws tuaj yeem siv tau rau ob qho kawg - ntawm - kab thiab nruab nrab - kab ntawv thov, muab ntau yam ntxiv hauv qhov chaw teeb tsa.
Lugged Npauj Npaim Valve Dimensions
| DN50 (2 nti) | 140 hli (5.51 nti) x 140 hli (5.51 nti) |
| DN65 (2.5 nti) | 170 hli (6.69 nti) x 170 hli (6.69 nti) |
| DN80 (3 nti) | 200 hli (7.87 nti) x 200 hli (7.87 nti) |
| DN100 (4 nti) | 240 hli (9.45 nti) x 240 hli (9.45 nti) |
| DN125 (5 nti) | 300 hli (11.81 nti) x 300 hli (11.81 nti) |
| DN150 (6 nti) | 360 hli (14.17 nti) x 360 hli (14.17 nti) |
| DN200 (8 nti) | 420 hli (16.54 nti) x 420 hli (16.54 nti) |
Hom Npauj Npaim Valve
Concentric Lug Npauj Npaim Valve
Hom no muaj lub disc nrog lub qia muab tso rau ntawm qhov chaw, uas ua kom cov yam ntxwv zoo sib xws uas zoo tagnrho rau cov hom phiaj dav dav uas xav tau kev sib khi zoo ib yam.
Ob chav Offset Lug Npauj Npaim Valve
Qhov chaw ntawm qhov offset qia me ntsis tawm -nruab nrab ntawm lub disc nce nws lub peev xwm sib khi thaum txo qis kev sib txhuam thaum lub sijhawm ua haujlwm yog li tsim nyog rau kev siv siab thiab kub kub.
Triple Offset Lug Npauj Npaim Valve
Lub valve no muaj qhov hloov pauv thiab inclined qia yog li txo qhov hnav thiab kev sib txhuam kom nruj dua - tawm thiab ua haujlwm ntev dua. Nws yog dav siv nyob rau hauv xav tau kev lag luam xws li roj & roj, tshuaj, petrochemical sectors thiab lwm yam.
High Performance Lug Npauj Npaim Valve
Cov li qub no tau tsim kho kom zoo dua qub, qhov kub thiab txias thiab kev sib khi ua haujlwm feem ntau muaj cov yam ntxwv zoo ntxiv xws li cov rooj zaum hlau, kev tsim hluav taws xob nyab xeeb thiab lub neej ntev.
Resilient -Seated Lug Npauj Npaim Valve
Nws siv lub rooj zaum elastomeric rau ntawm nws li no muab kev sib khi zoo kawg nkaus nrog lub zog me me thaum lub sijhawm ua haujlwm uas tsim nyog rau qis - siab lossis qis - kub siv qhov kaw ntom ntom - tawm tsis tseem ceeb.
Hlau -Seated Lug Npauj Npaim Valve
Cov li qub no muaj cov rooj zaum hlau thiab tuaj yeem ua haujlwm nyob rau hauv siab - siab thiab siab - qhov kub thiab txias ib puag ncig muab kev tiv thaiv zoo heev, tiv thaiv corrosion nrog rau nruj kaw- tawm nrog kev pab cuam lub neej ntev.
Bi-Directional Lug Npauj Npaim Valve
Tsim los ua haujlwm nyob rau hauv ob qho tib si ntawm kev ntws cov valve hom muab kev yooj yim hauv kev teeb tsa thiab kev ua haujlwm uas sib haum rau cov xwm txheej uas ntws tuaj yeem thim rov qab.
Wafer{0}}Lug Combination Npauj Npaim Valve
Cov li qub no ua ke wafer tsim cov yam ntxwv nrog lub lug txhawm rau nruab nruab nrab ntawm flanges lossis ncaj qha mus rau cov kav dej flanges uas tso cai rau lawv siv thoob plaws cov kav dej sib txawv raws li qhov yooj yim ntawm kev teeb tsa xav tau.
Tsim Thiab Kev Ntsuas Cov Qauv ntawm Lug Hom Npauj Npaim Valve
|
Tsim qauv |
BS 5155 / API 609 / AWWA C 504 Standard |
|
Kev soj ntsuam & kuaj Standard |
BS EN 12266 - I (BS 6755-I) / API 598 / ISO 5208 |
|
Flange rau Flange nrug |
Raws li ANSI B 16.10 / BS 5155 / API 609 |
|
Xaus kev sib txuas |
Wafer Hom Kom Haum Ntawm Ob Flanges |
|
|
ANSI B 16.5, Chav Kawm 150 / 300 / 600 |
|
|
BS 10 Table D / E / F / H |
|
|
PN 6 / PN 10 / PN 16 / PN 25 / PN 40 / PN 64 |
|
|
DIN Standard / JIS Standard / IS Standard |
|
Manufacturing Size Range |
2 "(DN50) rau 18" (DN 450) 1 |
|
Kev ntsuas siab ntawm Valve1 |
150# / 300# |
|
|
NP 10 / NP 16 |
|
Kev ua haujlwm valve |
Manual Flow Control Lever / Worm -Gear Actuator ua haujlwm |
|
|
Pneumatic Quarter Turn Rotary Actuator (Ib zaug ua haujlwm caij nplooj ntoos hlav rov qab / Ob chav ua haujlwm) |
|
|
Motorized Electrical Actuator Ua Haujlwm (Ib zaug lossis Peb Theem Fais Fab) |
|
Valve Seat Leakage |
Leakage Class VI (Xoom Leakage) |

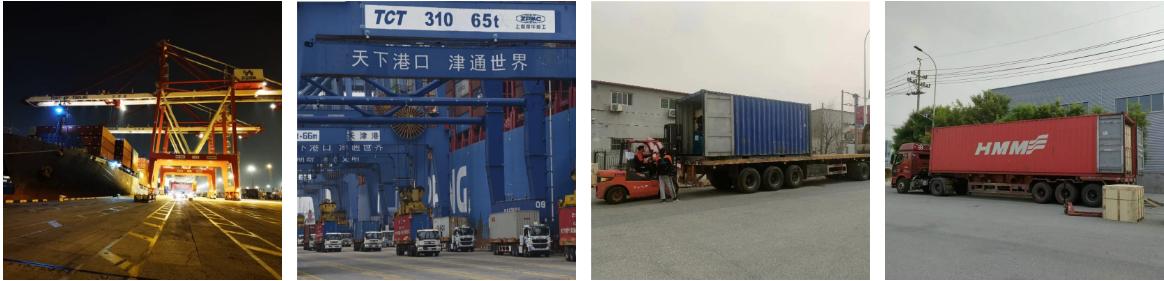

Product Packing & Shipping
